Stand Up HP/IP Brg Support Table
Stand Up HP/IP Brg Support Table
The Stand Up HP/IP Brg Support Table as been designed and manufactured for a UK based OEM. The main base frame of the support table has been fabricated from 40mm x 40mm box section with angle cross supports. It features…
Read More

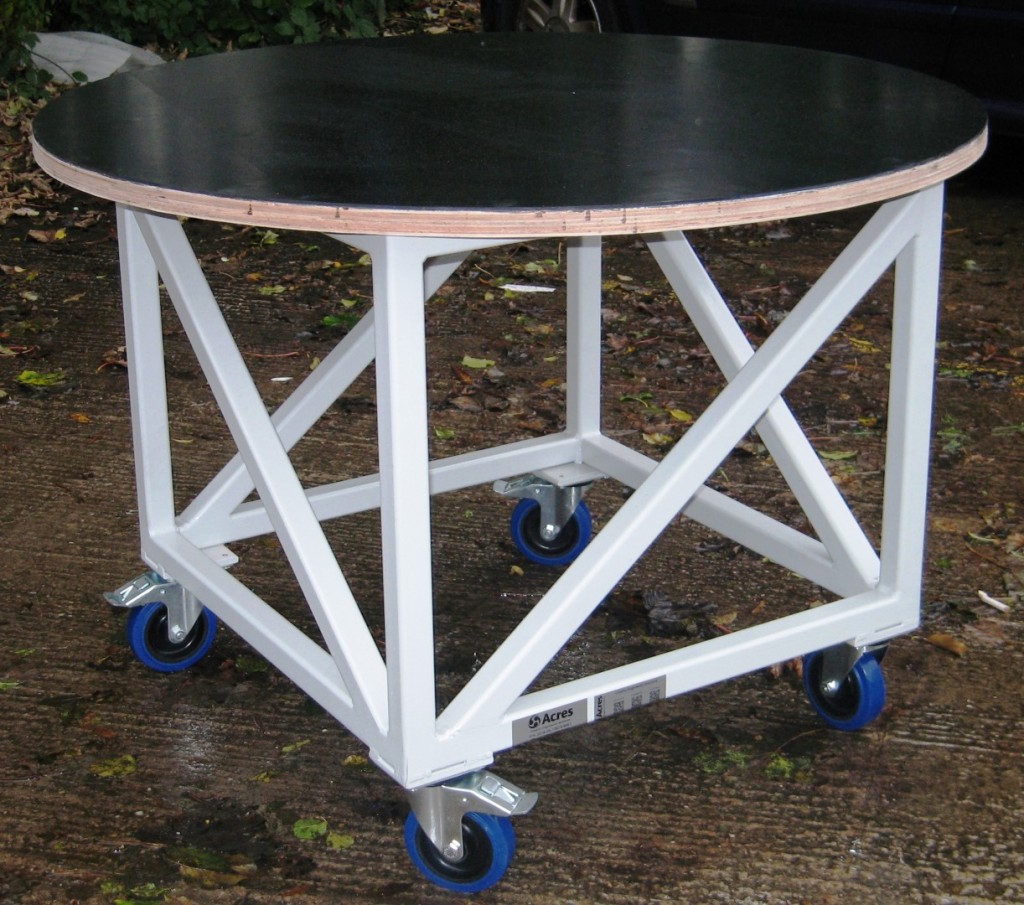

The Stand Up HP/IP Brg Support Table as been designed and manufactured for a UK based OEM. The main base frame of the support table has been fabricated from 40mm x 40mm box section with angle cross supports. It features 4 off 125mm swivel and braked castors with non marking elastic tyres load rating 200 kg per castor. The circular top of the table has been manufactured from 25mm thick far eastern plywood which is covered in 3mm rubber.
The table has been load tested to give a SWL of 600 kg.
Approximate overall size – 1125mm diameter x 800mm (H).
The unit has been powder coated in Light Grey RAL 7035 to give a hard wearing durable finish.
