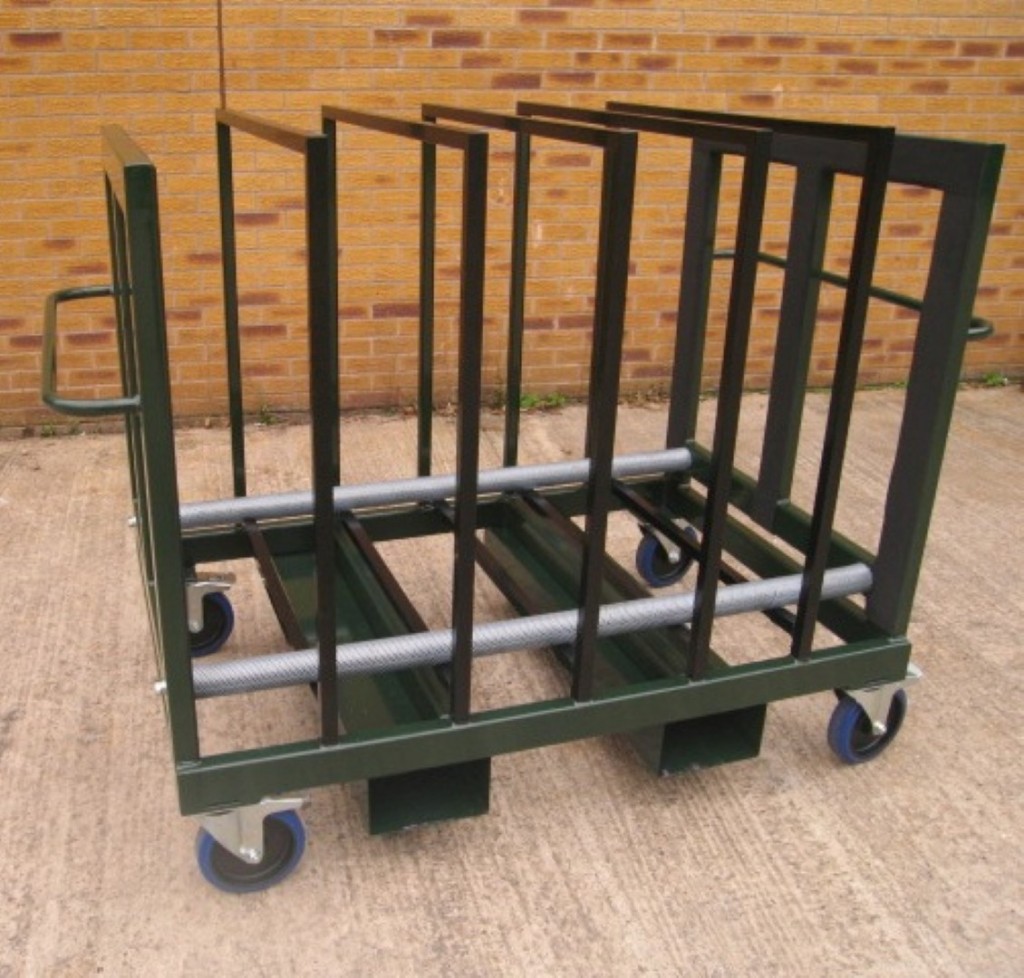

Toast Rack Trolley For Circular Support Disc

Drawing Number: AD-540-2014-09



The Toast Rack Trolley has been manufactured to safely store Circular Support Disc’s for the customer when not in use.

The Toast Rack Trolley base has been manufactured from 80mm x 40mm steel box section and has a 2mm steel base. The dividers for the discs are manufactured from 25mm steel box section. The rack has been designed so that discs loaded onto the trolley cannot roll out of the rack.

To protect the discs, there is foam in the base of the rack, and the dividers have a plastic extrusion attached to eliminate any damage.

The rack features 2mm steel sheet fork pockets for the transportation of the rack and also has 200mm diameter swivel and braked castors fitted with black centred blue non-marking elastic tyred wheels.

Approximate overall size 1500mm (W) x 1000mm (D) x 1300mm (H)

Acres reference: AD-540-2014-09
