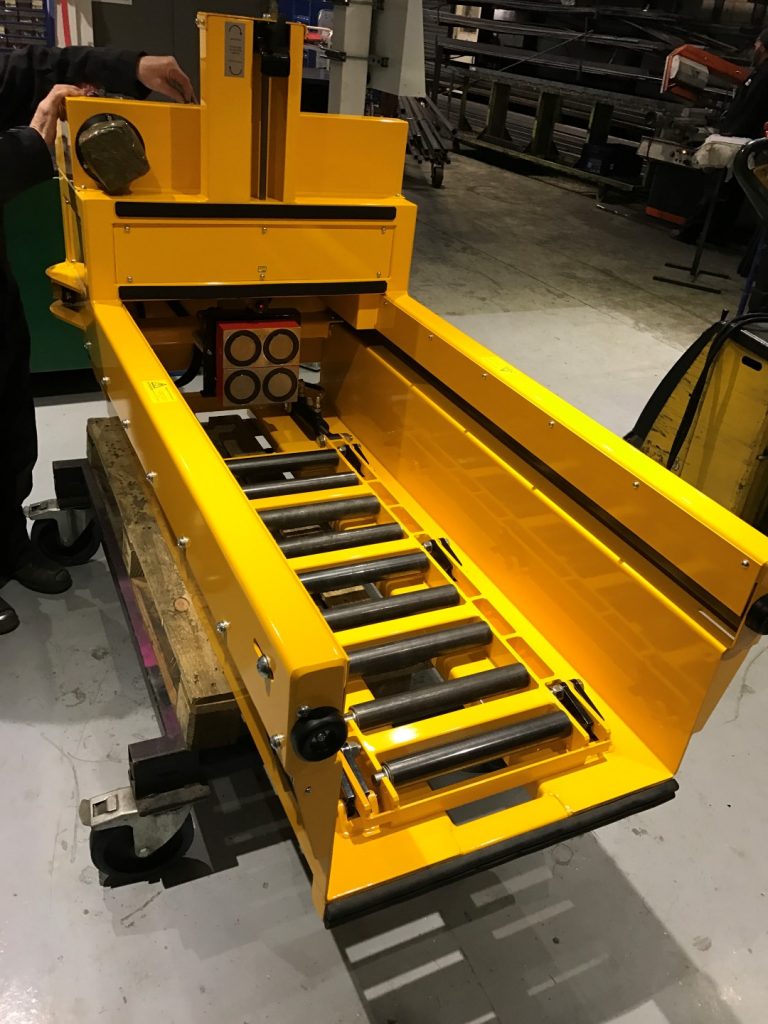

Trak® Xchange Powered Battery Changing Unit – PU 1250 x 650

Drawing Number: AD-1082-2016-05


Fork-truck Battery Changing Unit  – PU 1250 x 650: Dual Height

As part of an ongoing relationship with Hoppecke Batterien, Acres produce a number of bespoke fork-truck battery changing units to suit customer requirements. Our product has improved incrementally over the years giving our designers and fabricators a wealth of experience to tackle almost any request.

The Acres PU powered battery changing unit is fixed to a PPT (Powered Pallet Truck) providing a fast and efficient mobile battery changing solution for 24 hour warehouse operations.  The PU is powered by a hydraulic power pack which, in partnership with a pair of powerful magnets exchanges batteries between fork trucks and battery charging racks.

The Dual Height design provides increased lift range enabling one unit to work effectively on sites where multiple battery sizes and multiple fork lift trucks are used.

IMG_1065 Battery Changing (Mobile)

Acres are currently exporting custom machines to Germany, France, Belgium, Spain, Poland, Holland, Slovakia, Abu Dhabi, Dubai, South Africa and China as well as serving the UK.

For more information about the Hoppecke battery changing unit see: The trak® Xchange PU.

Design Scope:

Hoppecke France

Battery Details:
Battery 1: 1220 L x 427 W x 784 H
Battery 2: 790 L x 210 W x 784 H
Battery 2: 621 L x 287 W x 627 H

Battery Load Test: 1400kg

PPT Details:
PPT: Jungheinrich EJE 120
PPT Lift Range: 122mm
PPT Lowered fork height: 120mm
PPT fork length: 1600mm
PPT fork spread: 540mm
PPT Fork width: 175mm

Roll Off Height:
Minimum roll off set to 160mm
+53mm raise in roller bed = 213mm
+122mm PPT lift = 335mm max

Additional Features:
Magnet head Extension: 135mm
Decal Language: French
Yellow label around E stop
Double D fender required to lower chassis
Key code switch

Colour: RAL 1028 Yellow

Acres Drawing Number: AD-1082-2016-05
