Workstation 6 Kitting Module

Drawing Number: AD-1163-2016-10


Workstation 6 Kitting Module – REF 2016-09-12947

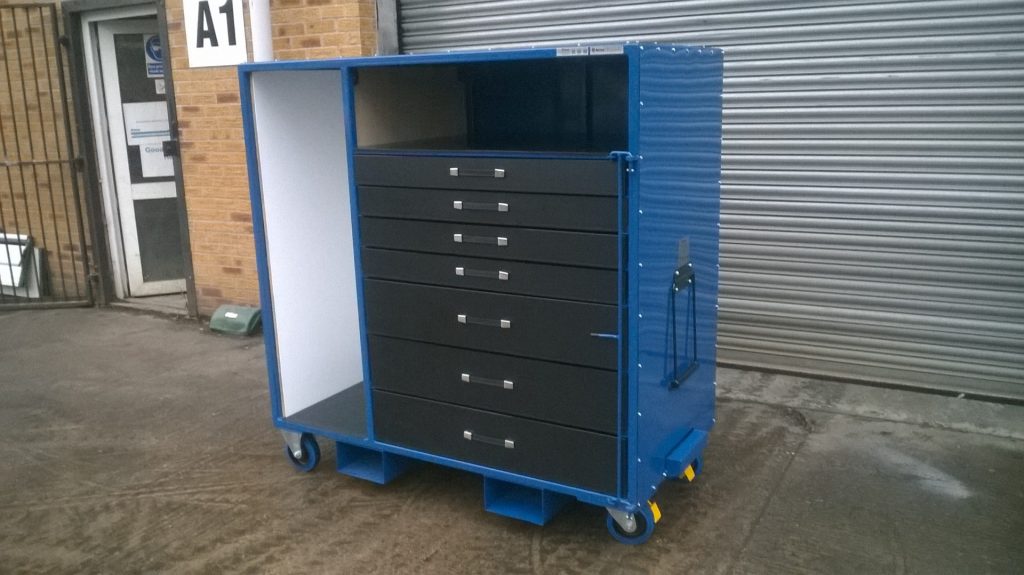

The Workstation 6 Kitting Module has been designed and manufactured for a local Aerospace OEM for use on their site in Germany for transporting aerospace components to the build line. This kitting solution is a variation of our standard workstation kitting module design.

The unit has been based around a 1.5M A Frame base, with mild steel panel back, sides and top. The overall footprint and height of the trolley will be the same as the customer’s existing 1.5M A frame. The interior of the module features three sections for storage of parts.

The first section on the left hand side is a compartment lined with shadow boards so that pipes can be attached and protected.

The second compartment (lower right) is a PE300 drawer pod with 7 off drawers, 4 off drawers at 100mm deep and 3 off at 200mm deep. A retaining bar will holds the drawers closed while in transport.

The third section (top right) is an area that can store C class parts.

The unit is assembled with 4 off 160mm castors with blue elastic tyres and black plastic centres. 2 off castors are fixed and 2 off castors feature an an upgraded, easy to operate braking mechanism. The design also features fork lift truck pockets for lifting and a drop down handle to one end.

The trolley has been powder coat finished in BS 4800 20D45 (Blue) to provide a hard wearing long lasting finish.

Approximate overall size – 1500mm (L) x 800mm (D) x 1650mm (H).

Quantity required – 2 off

Acres Reference – AD-1163-2016-10
