XWB Suspension Kit

Drawing Number: AD-1164-2016-10-1


XWB Suspension Kit – REF 2016-09-12949

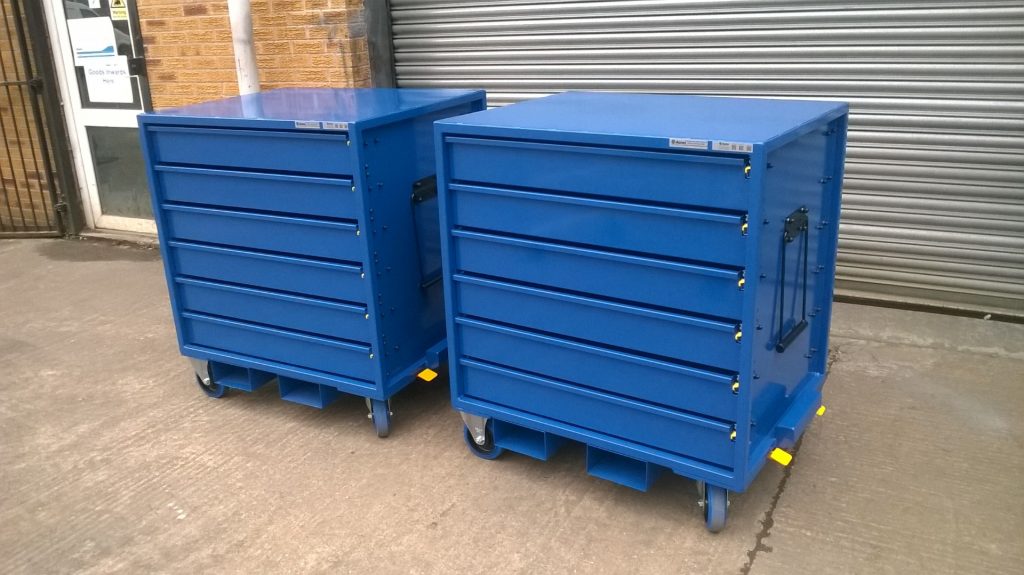

The XWB Suspension Kit has been designed and manufactured for a local Aerospace OEM for use on their site in Germany for transporting aerospace components to the build line. This kitting solution is a variant of our suspension kit which provides a flexible kitting option for transporting prepackaged components keeping them secure during transportation.

The frame work is manufactured from a thin walled box section to provide an optimum strength vs weight solution. The design features mild steel roof and side panels.

The design features fork lift truck pockets for lifting and a drop down handle to one end.

The design also features 6 off drawers, the drawers are linked so that only one drawer can be opened at any one time and also feature a safety catch that has to be pressed to release the drawer.

The unit is assembled with 4 off 160mm castors with blue elastic tyres and black plastic centres. 2 off castors are fixed and 2 off castors feature an an upgraded, easy to operate braking mechanism.

The trolley has been powder coat finished in BS 4800 20-D-45 Blue to give a hard wearing durable finish.

Approximate overall size- 1200mm (H) x 800mm (D) x 1000mm (W).

Required Quantity: 2 off

Acres Reference – AD-1164-2016-10-1


Have a design and development project you want the Acres team to look at? Can’t see what you want? Need something different?

Acres Engineering is established as a leader in delivering bespoke creative engineered solutions. Many OEM’s and tier one/ two suppliers in aerospace, automotive, rail and power generation industries have chosen us as their solutions partner because of our innovative attitude towards individual challenges and commitment to continual improvement.
