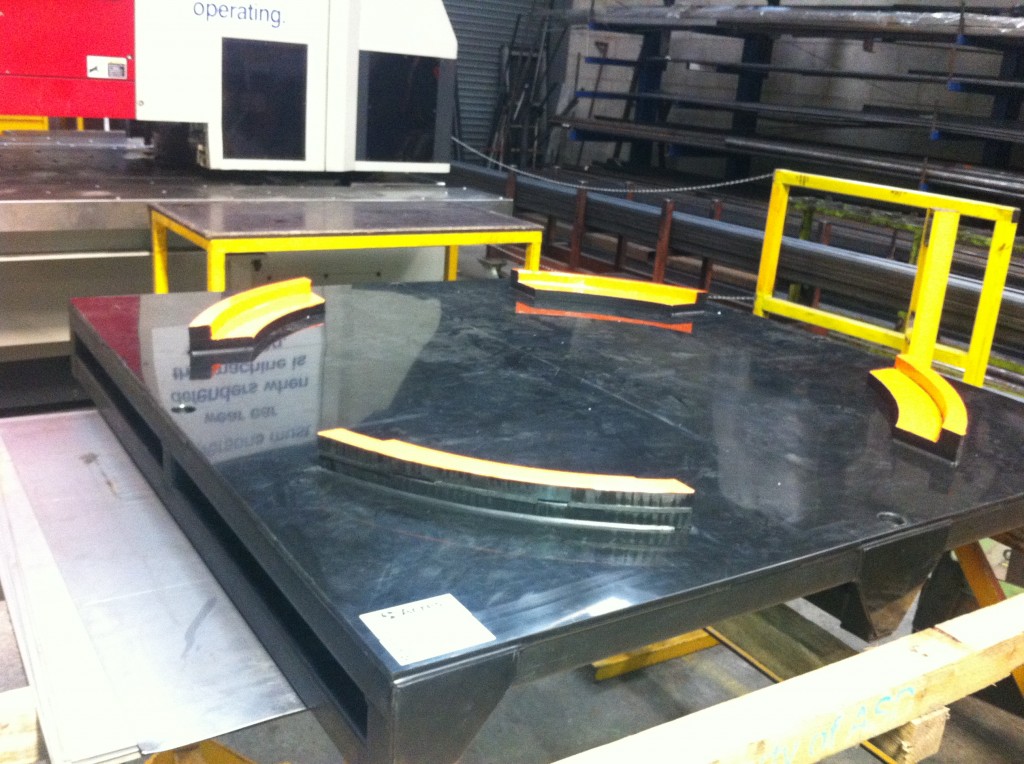

Trent 700 Rear Case Pallets – REF 2012-09-9549



Produce CAD drawings and manufacture Trent 700 Rear Case to drawing  AD-46-2013-01-rev 2.

The base frame of the pallets will be fabricated from 50mm x 50mm x 4mm wall square PE300 plastic extruded profile with the top section and  side supports from 10mm thick PE300 sheet. It will also feature a removable divider panel to separate the rear case sections. The Pallets will be plastic welded together and have no metal parts.

Approximate overall size : 1200mm x (L) x 1200mm (W) x 150mm (H).
