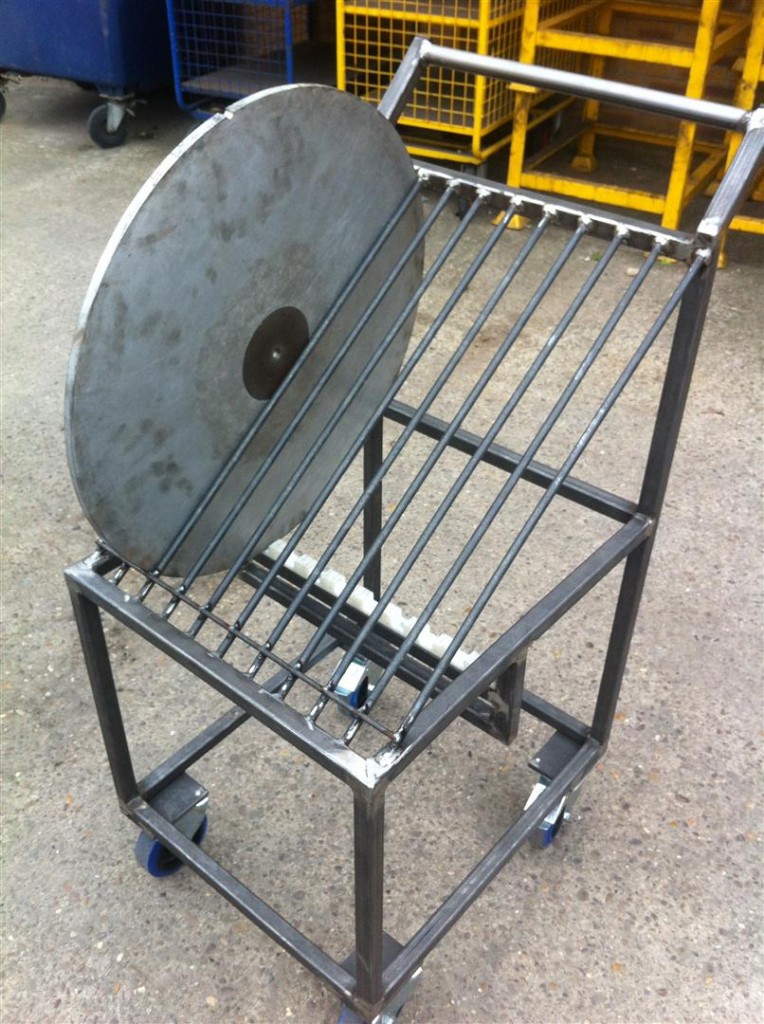

2012-12-9752 – Baseplate Trolley


Produce CAD design and manufacture Wax Baseplate Trolley.

The trolley will be fabricated from 25mm x 25mm box section for the base frame and 25mm formed round tube for the handle. And 10mm Round Bar.

The trolley will be assembled with 4 off 125 mm castors with blue elastic tyres and black plastic centres, 2 off swivel with brakes and 2 off fixed.

Approximate overall size – 920mm (H) x 500mm (W) x 640mm (L).
