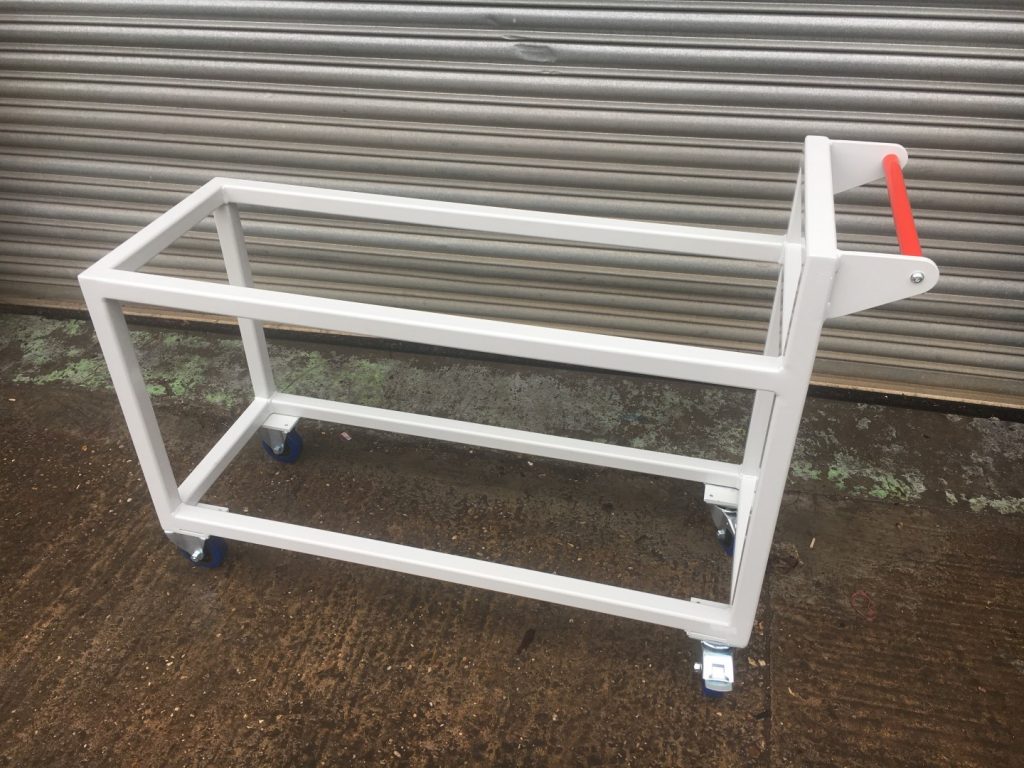

30049-00 Trolleys – REF 2016-11-13166
The 30049-00 trolleys have been manufactured for a supplier to the British manufacturing industry for use to store and transport Automotive components.
The trolley has been made from 40 x 40mm mild steel box section for the frame with a 25mm mild steel handle to one end. The design features 4 off 100mm diameter castors, to the below specification for manoeuvrability.
2 x 100mm fixed castors – Pressed steel fixed castor with a top plate fixing fitted with a blue 75 shore A elastic rubber tyre on black nylon centred wheel with a roller bearing. Wheel diameter 100mm, tread width 40mm.
2 x 100mm swivel with break castors – Pressed steel swivel castor with flat top plate fixing fitted with a blue 75 shore A elastic rubber tyre on black nylon centre wheel with roller bearing and totallock brake. Wheel diameter 100mm, tread width 40mm..
The castors provide a combined max load of 450kg.
This design features machined nylon components along the contact surface. These are to be supplied and fitted by the customer.
The trolleys have been powder coated in RAL 9001 Ivory to provide a hard wearing long lasting finish.
Approximate overall size – 450mm (W) x 1200mm (L) x 730mm (H).
Acres Reference – AD-1202-2016-12
Quantity: 8 Off
