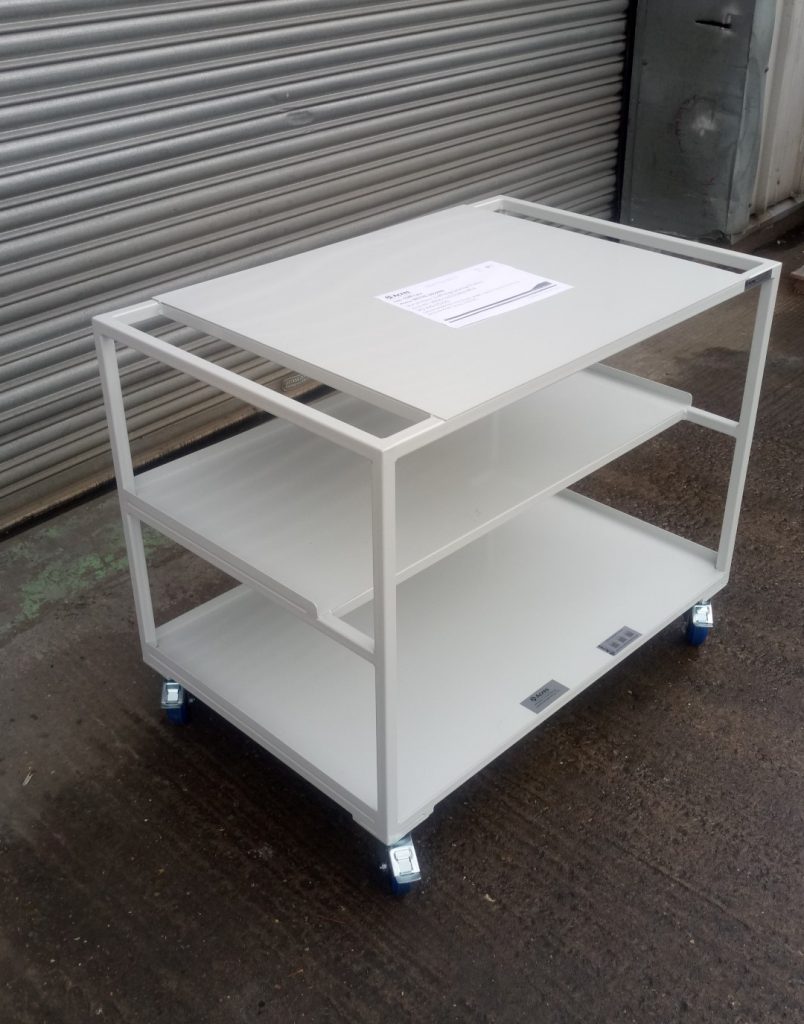

Bag Sealing Trolley

Drawing Number: AD-1213-2017-01



Bag Sealing Trolley – REF 2016-11-13160/7853

The Bag Sealing Trolley has been designed and manufactured for a local Aerospace OEM for use with a bag sealing unit for bagging up aerospace components.

The trolley has been designed to be capable of storing 5 off 500mm (D) x 330mm (W) x 200mm (H) card boxes for storing plastic bags as well as a Hacona S620 bag sealing unit.

The unit has been manufactured from 25mm box section with 2mm sheet steel base and backplate. A mid shelf has been included for the storage of cardboard boxes.

The trolley also features 4 off 100mm dia castors for manoeuvrability.

The trolley has been powder coated in Light Grey RAL 7035 to give a hard wearing durable finish.

Approximate overall Dimensions:
1000mm(W)  x  700mm(D) x 840mm(H).

Quantity required –3 off

Acres Reference – AD-1213-2017-01
