AD-163-2013-05 – Makino A55 Operator Platform
AD-163-2013-05 – Makino A55 Operator Platform
Manufacture the Makino A55 Operator Platform to drawing number: AD-163-2013-05. The Platform will be manufactured from 40mm x 40mm box section for the base frame and handrail with 25mm x 25mm angle to support the fibreglass antislip grating. Under the…
Read More

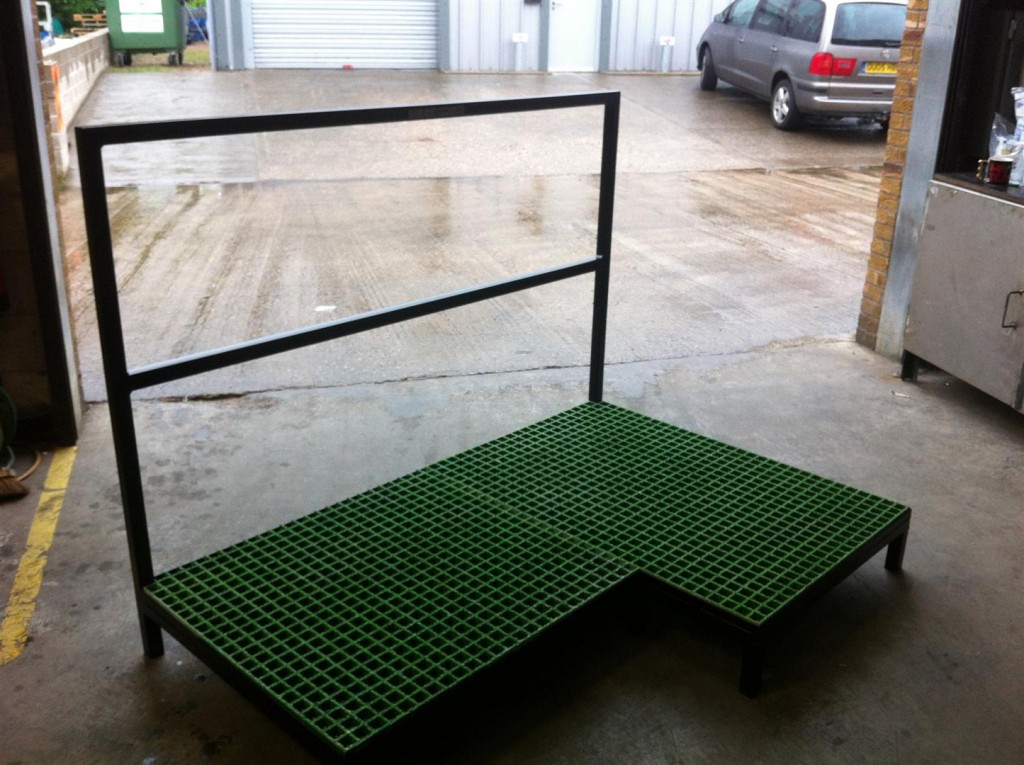

Manufacture the Makino A55 Operator Platform to drawing number: AD-163-2013-05.
The Platform will be manufactured from 40mm x 40mm box section for the base frame and handrail with 25mm x 25mm angle to support the fibreglass antislip grating. Under the grating will be a sheet metal drip tray to catch any oil preventing it from causing a slippery floor surface around the machine.
Approximate overall size – 1800mm (L) x 1200 (W) x 1300mm (H) to the top of the hand rail, platform working height will be 200mm.
