Trak® Xchange Battery Change Device – PU 1250 x 650 Dual Height

Drawing Number: AD-971-2016-02


Fork Truck Battery Change Device – PU 1250 x 650 Dual Height

As part of an ongoing relationship with Hoppecke Batterien, Acres regularly produce a number of bespoke fork truck battery changer units to suit customer requirements. Our product has improved incrementally over the years giving our designers and fabricators a wealth of experience to tackle almost any request.

The Acres PU battery change device is fixed to a PPT (Powered Pallet Truck) providing a fast and efficient mobile battery changing solution for around the clock warehouse operations.  The PU is powered by a hydraulic power pack which, in partnership with a pair of powerful magnets exchanges batteries between fork trucks and battery charging racks.

Acres are currently exporting custom machines to Germany, France, Belgium, Spain, Poland, Holland, Slovakia, Abu Dhabi, Dubai, South Africa and China as well as serving the UK.

For more information about the Hoppecke battery changing unit see: The trak® Xchange PU.

Design Scope:

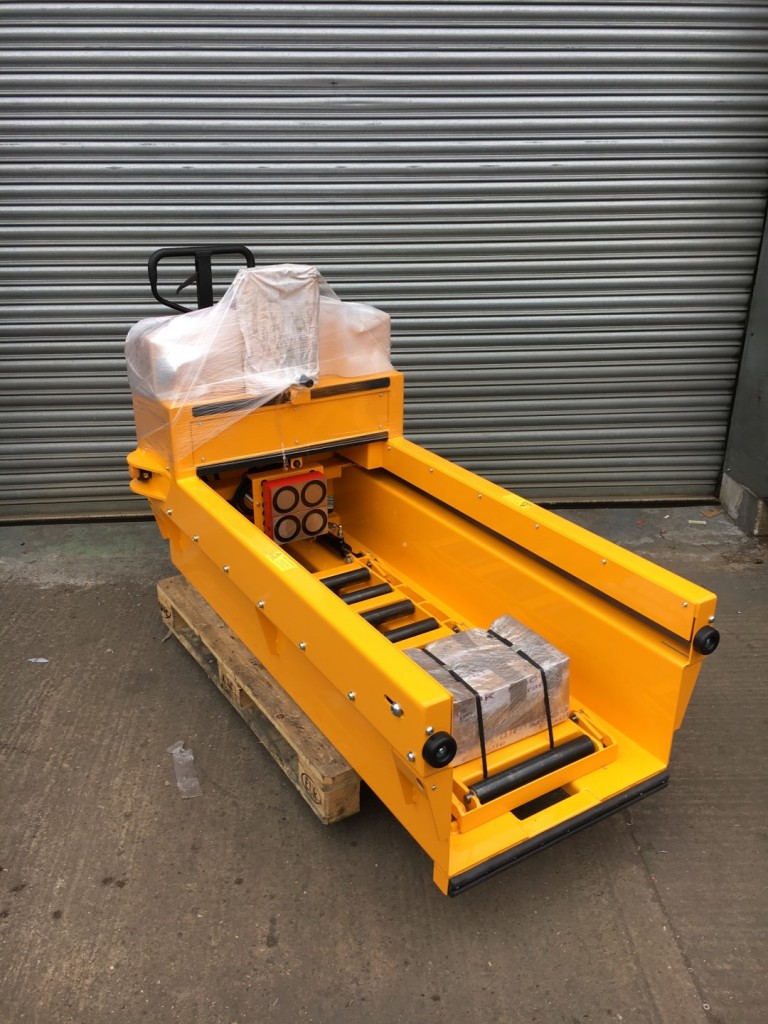

This bespoke design features a dual height 1250mm x 650mm bed. This design also features a laser guide to assist the operator with levelling the bed and speed up the exchange process.

Hoppecke France

Battery Details:

battery 1   Dimensions 1220x 427 x 784   TO =180mm
battery 2   Dimensions 790 x210 x 784 TO =180mm
battery 3   Dimensions 621 x287 x 627   TO =320mm
Roll take off height:  160 mm with + 50mm raise in roller bed

Optional Extras:

Laser pointer
Rear exit magnets

All labels are in French
Colour Specification = RAL 1028 YELLOW

PPT Details:
Type = Jungheinrich EJE 220
Fork Length = 1600mm
Fork Spread = 540mm
Fork Width = 170mm

Note: Acres can only set the minimum roll off
height the maximum is determined by the
lift range on the PPT, note that on some
heavy batteries the PPT may relax (yield)
by up to 13mm.

Acres job number: AD-971-2016-02
