Bolt Boxes

Drawing Number: AD-440-2014-05


Bolt Boxes Design.

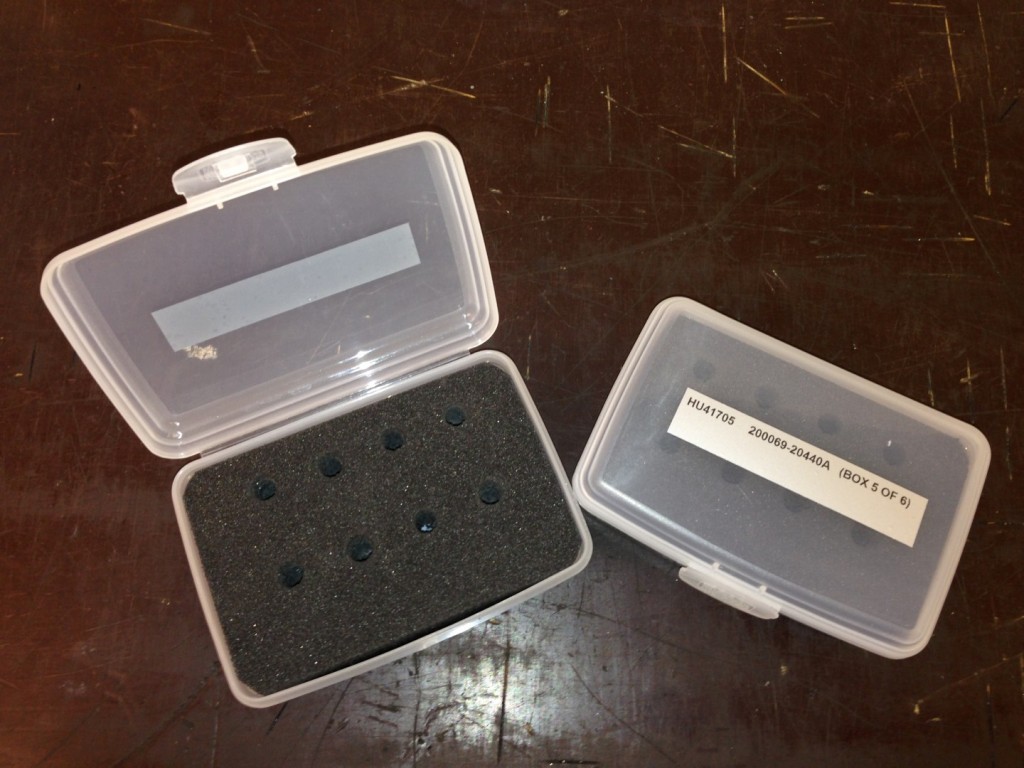

This item has been designed with clear plastic boxes and plastizote foam inserts to locate 8 off bolts. The box allows the contents to be viewed without the need to open for visual inspection. The box has also been labelled to identify the parts.

Approximate overall size – 150mm (W) x 105mm (L) x 50mm (H).

Acres Reference – AD-440-2014-05
