Dashboard Carrier Tray


Dashboard Carrier Tray

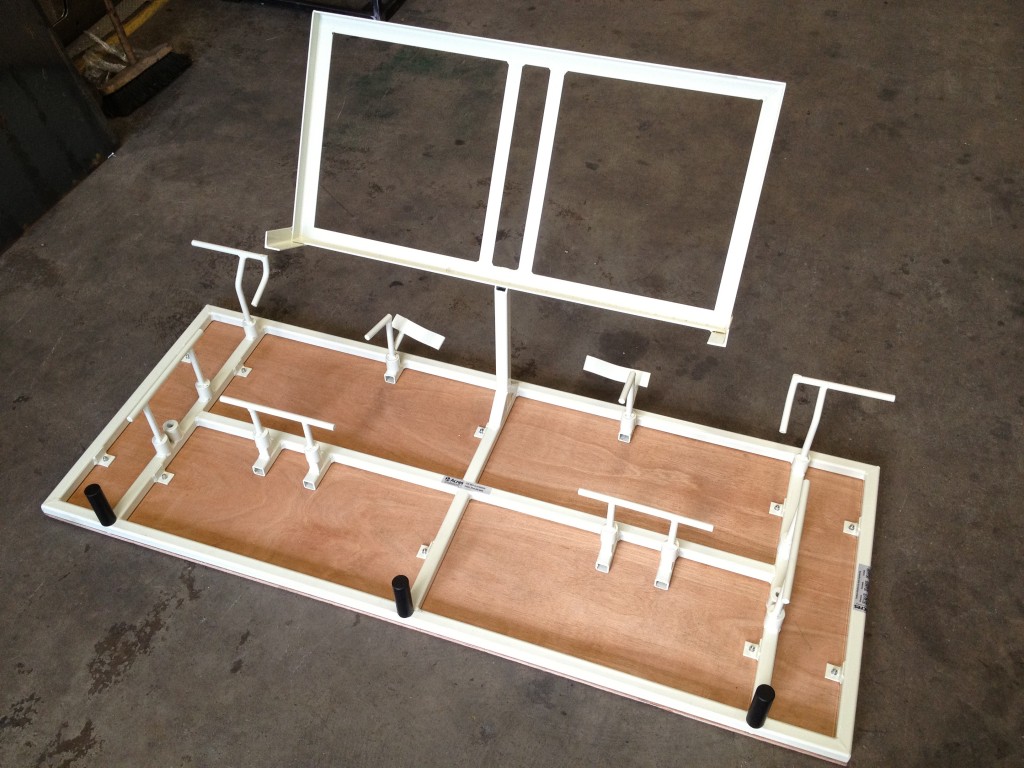

The 445L IP Upper carrier tray has been formed from a pressed up 1.5mm mild steel sheet fitted to a 20mm x 20mm box section frame. The contact plates are made from 2mm formed mild steel mounted on 8mm round bar. The top face of the contact plate is covered with 6mm foam neoprene to prevent marking the IP.

The overall size of the tray is 1500mm long by 600mm wide.

Ref: 2012-04-9186
