Furnace Room Mould Trolley

Drawing Number: AD-1250-2017-03

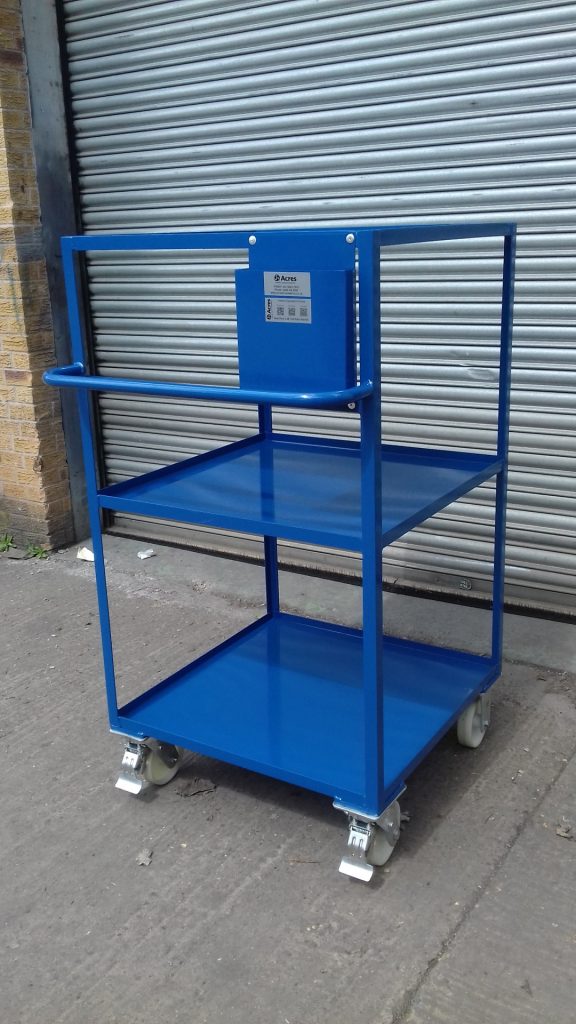

Furnace Room Mould Trolley – REF 7955

This bespoke kitting trolley solution has been designed and manufactured for a Midlands based aerospace company to transport components to and from the furnace room keeping them secure during transportation.

The Furnace Room Mould Trolley is designed and manufactured with 30 x 30 angle for the main framework with formed up 1.6mm sheet for the three shelves. The trolley has a 25mm circular hollow section handle at one end to aid manoeuvring the unit around.

To one side of the trolley is a document pocket fabricated from 1mm mild steel to store A4 documents.

The trolley is assembled with 4 off 150mm high temperature castors with nylon wheels, 2 off are swivel with brakes and 2 off are fixed, providing a load capacity of up to 750kg each.

The trolley has been powder coat finished in BS 20 D 45 Blue to give a hard wearing durable finish.

Approximate overall size-  760mm (L) x 760mm (W) x 1400mm (H).

Acres Reference – AD-1250-2017-03

Quantity: 1 off Prototype Trolley
