Supermarket One Trolley

Drawing Number: AD-1250-2017-03

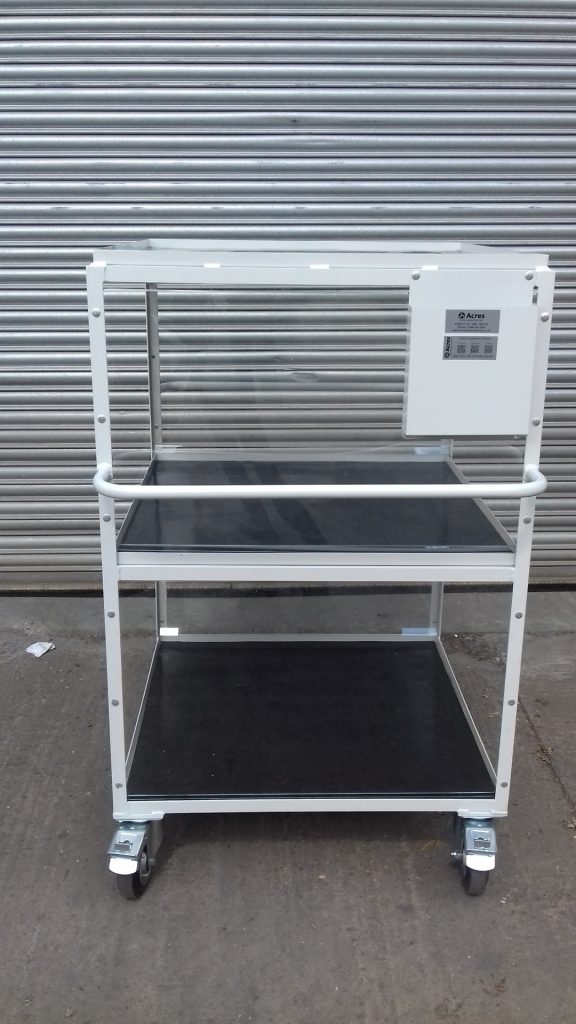

Supermarket One Trolley – REF 7941

This bespoke kitting trolley solution has been designed and manufactured for a Midlands based aerospace company to transports components keeping them secure during transportation.

The Supermarket One Trolley is designed and manufactured with 30 x 30 angle for the main framework with formed up 2mm sheet for the three shelves. The trolley has a 25mm Circular handle at each end to aid manoeuvring the unit around.

Each shelf features a 3mm thick rubber inlay to protect parts and prevent any metal to metal contact. Either end of the trolley features a polycarbonate panel that has been riveted in place.

The trolley is assembled with 4 off 160mm castors with black elastic tyres on aluminium centres, 2 off are swivel with brakes and 2 off are fixed providing a load capacity of 350kg each.

The trolley has been powder coat finished in RAL 7035 Light Grey to give a hard wearing durable finish.

Approximate overall size-  1170mm (L) x 870mm (W) x 1400mm (H).

Acres Reference – AD-1250-2017-03

Quantity: 6 off Trolleys.
