Inspection Tables for CR Area

Drawing Number: AD-975-2016-02



The custom designed Inspection Tables for CR Area have been manufactured for a midlands based aerospace client for use during the inspection of parts supplied into the Engine Overhaul Services & Internal Logistics Centres.

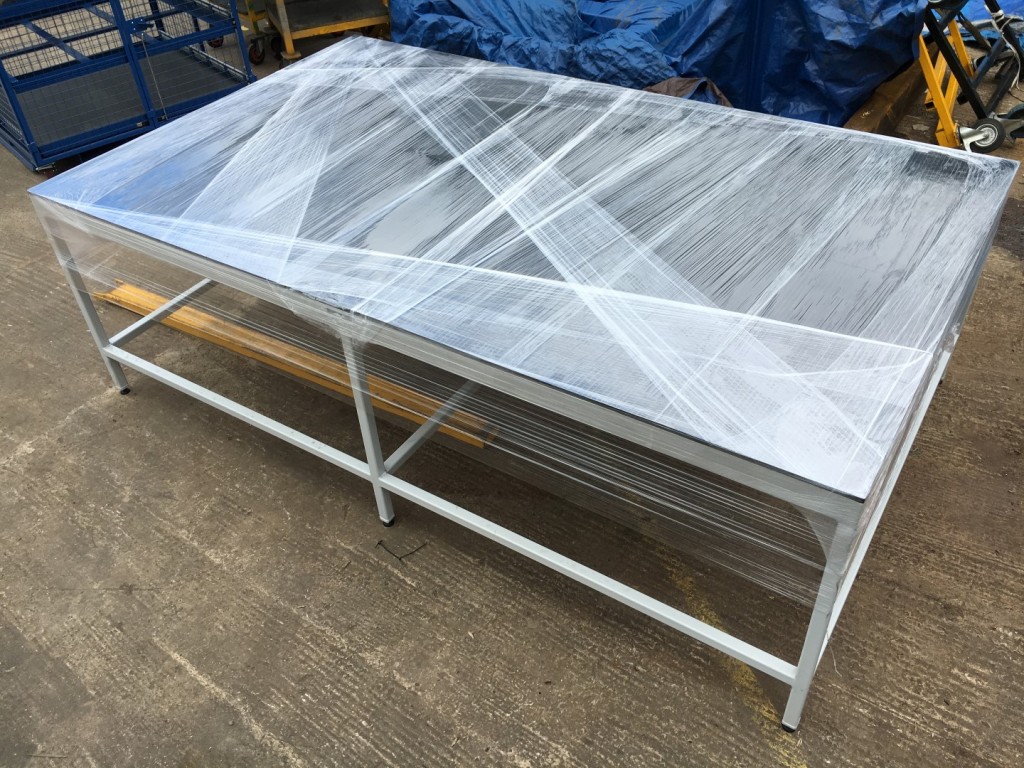

Inspection Tables AD-975-2016-02-REN1-1 (Mobile)

The tables have been manufactured from 40mm x 40mm box section for the base frame section and 40mm x 40mm angle for the top frame to allow a 36mm thick plywood bench top to be inset into the frame. The plywood has then been covered in a hardwearing 10mm thick commercial grade rubber to prevent any risk of metal to metal contact.

The solution has been powder coated in RAL 7035 Light Grey to provide a high quality, durable finish that will ensure product longevity.

Approximate overall size – 3000mm (L) x 1800mm (W) x 890mm (H)

Acres ref: AD-975-2016-02
