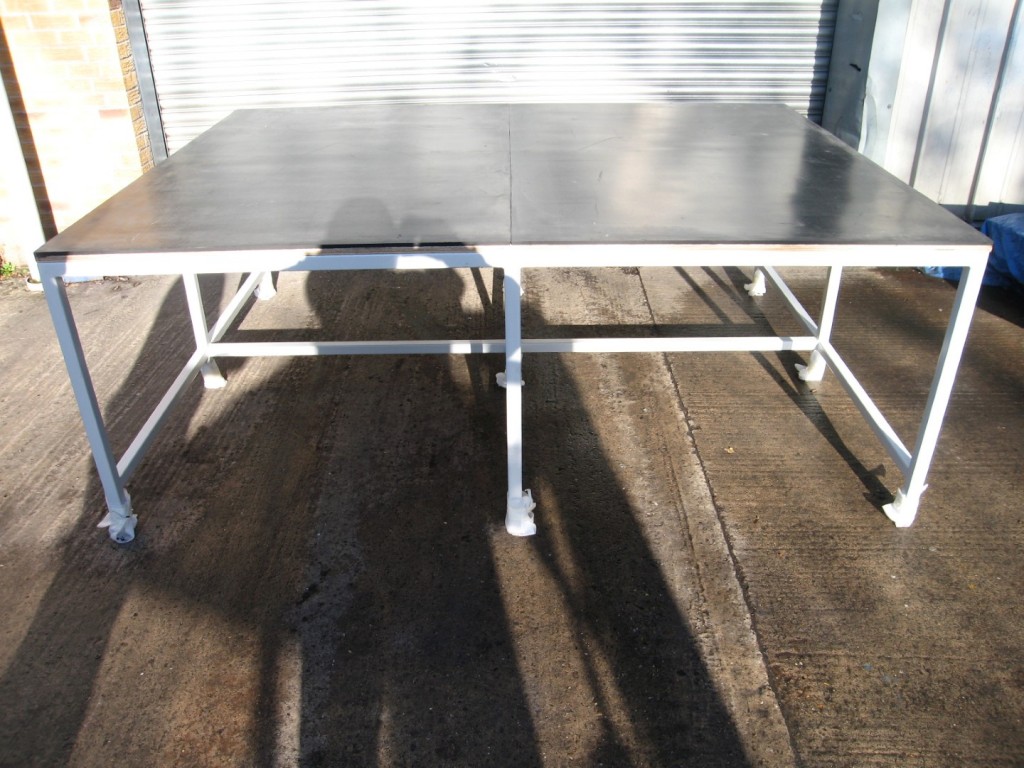

Kitting Table

Drawing Number: AD-807-2015-09



The Kitting Table has been designed to assist in the manufacture and overhaul of gas turbine engines for a large midlands based OEM within the aerospace sector.

Scope of Work:

Visit site to evaluate customer requirements, produce CAD drawings and manufacture 1x off Kitting Table.

The tables will be used for the kitting and un-boxing of parts supplied into Aero Repair & Overhaul and Integrated Logistic Centre.

They have been manufactured from 40mm x 40mm box section for the base section and 40mm x 40mm angle for the top frame to allow a 36mm plywood top to be inset into the frame. The plywood has been covered in hardwearing 10mm thick commercial grade rubber to prevent metal to metal contact.

Approximate overall size – 2440mm (L) x 1835mm (W) x 890mm (H)

Acres Drawing number: AD-807-2015-09
