Lifting Bar XPE 1304


Lifting Bar XPE 1304 Design

The Lifting Bar is designed to handle XWB, T700, T900 engine parts for the wash process giving more versatility to the operators.

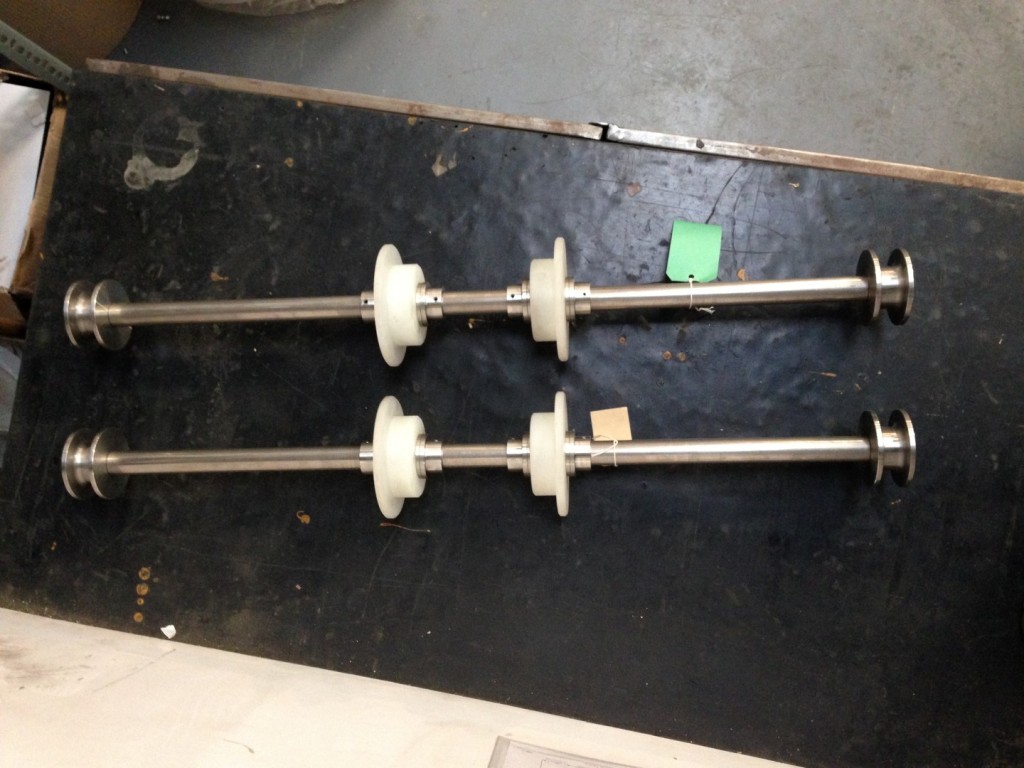

The main support bar is manufactured from 30mm 304 stainless steel round with machined collars and washers to locate the 2 off Polypropylene fixture discs. It features grooved lifting bosses bolted to each end of the main support bar to link up with a Twin Hook Beam Lifter.

The lifting bars have a self colour finish as requested by the customer. Approximate overall size- 1000mm (L) x 150mm (Dia).

Acres Reference – AD-327-2013-12-1
