Pallet Stacker Sleeves

Drawing Number: AD-1169-2016-10


Pallet Stacker Sleeves: REF: 2016-11-13140

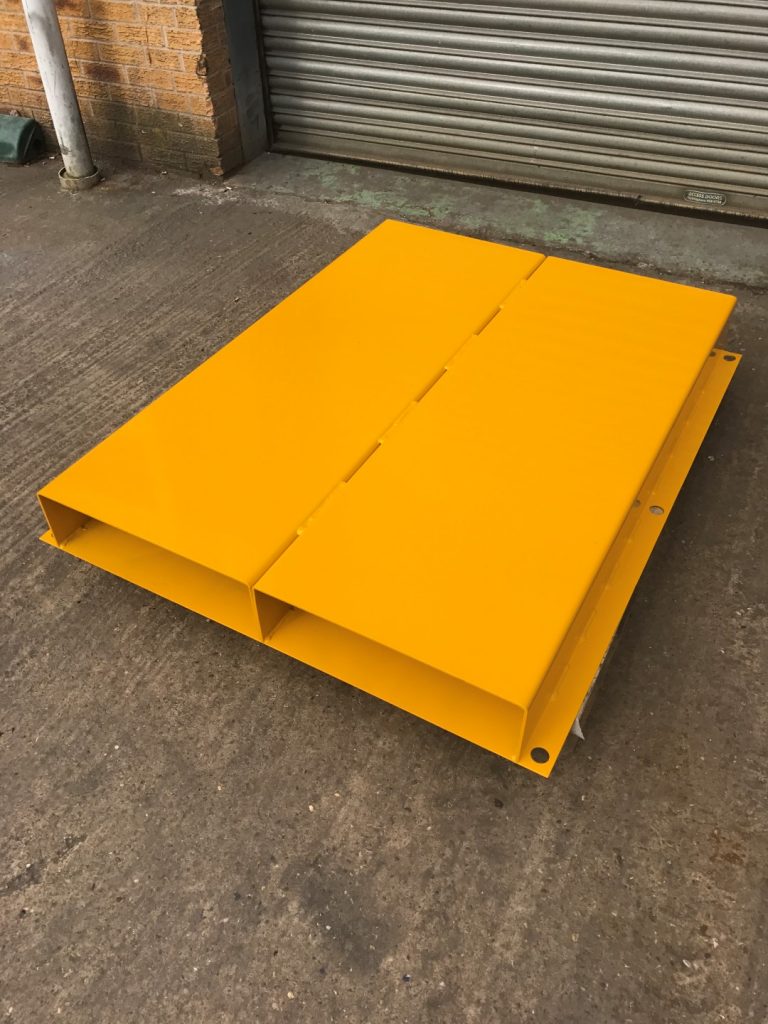

The pallet stacker sleeves have been designed and manufactured for a large west midlands based automotive OEM. The pallet stacker sleeves are designed to guide and locate the forks on a pallet stacker during the transfer of pallets around a warehouse environment.

Each pallet stacker has been manufactured from 3mm and 5mm laser cut and formed mild steel sheet.

The pallet stackers are secured to the floor via 6 off M10 Thrubolts. Oversized holes used to allow for movement on impacts.

The Pallet Stacker Sleeves have been powder coated in RAL 1003 – Safety Yellow to provide a hard wearing durable finish.

Approximate overall size- 1600mm x 900mm x 130mm.

Acres Reference – AD-1169-2016-10
