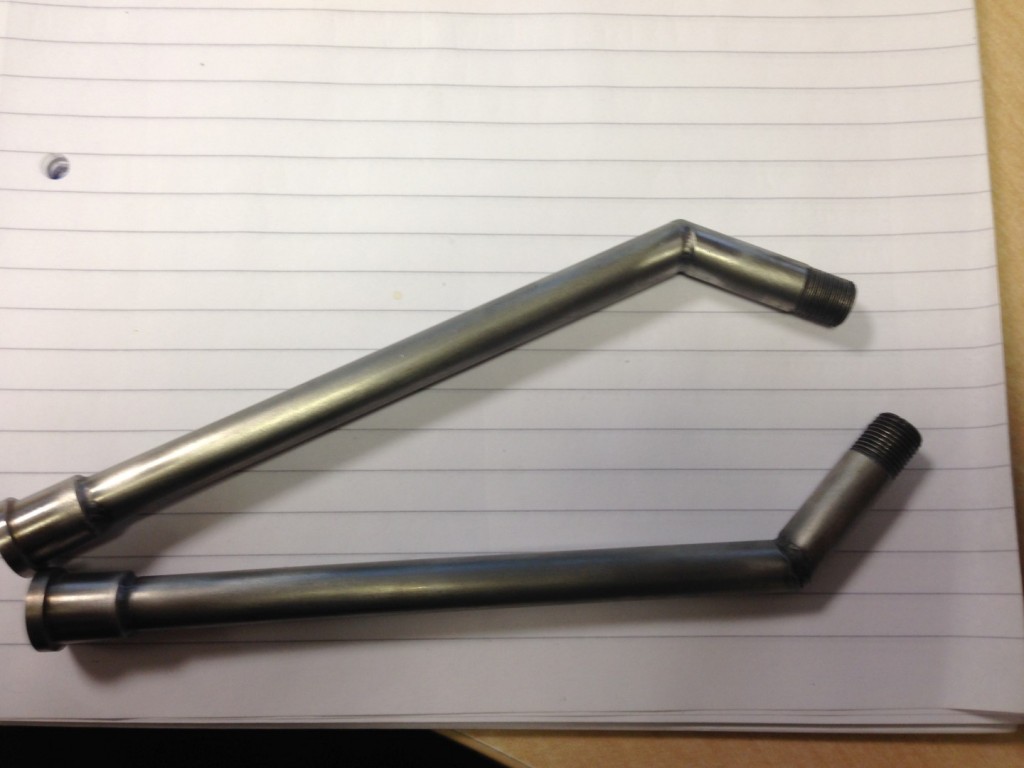

Spray Extension Barrel

Drawing Number: AD-366-2014-02


Spray Extension Barrel Design.

The spray extension barrels have been manufactured for a local midlands based Automotive OEM for use in their body-shop area. The extensions have been manufactured from 303 stainless steel. They have used both welding and machining processes to achieve a high quality finish required by the customer to suit this specific application.

The barrels have been left in a self coloured state as requested by the client. Approximate overall size – 175mm (L) x 15mm (Ø)

Acres Reference – AD-366-2014-02
