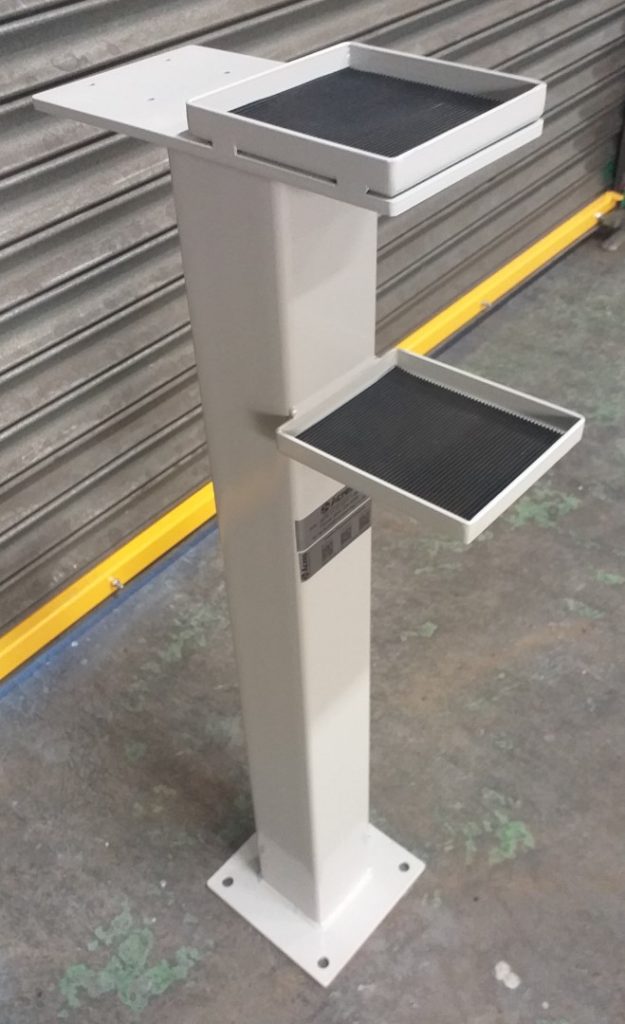

Tooling Stand
Tooling Stand
The Tooling Stand has been designed and manufactured to allow fast, easy access to tools when operating machine or carrying out tasks requiring a number of tools. For this project, the stand was supplied to be placed next to milling…
Read More
The Tooling Stand has been designed and manufactured to allow fast, easy access to tools when operating machine or carrying out tasks requiring a number of tools.
For this project, the stand was supplied to be placed next to milling machines so that the operators can change the tooling without the needing to move a workbench to do it. Thus reducing the time between tooling change, and as a result, improving the productivity.
Features
Tooling stand is made from 100x100x2 SHS, with a 8mm plate on the bottom to bolt the stand to the floor and a 5mm.
- Safe working load of 80 kg.
- Plate on top to bolt to the tool.
- Top plate stays at 950mm from the floor.
- Features a small tray formed from 3mm sheet welded to the post at 750mm from the floor.
