Rework Stations

Drawing Number: AD-984-2016-03-1



The rework stations have been designed and manufactured for a west midlands based automotive client. The rework stations have been designed to integrate into an existing ASRS (Automated Storage and Retrieval System) conveyor system at their Solihull site.

The stations provide a location for the operator to re-scan boxes, assess the issue (as displayed on a nearby screen), correct the issue, and return the box onto the conveyor system.

Rework Stations

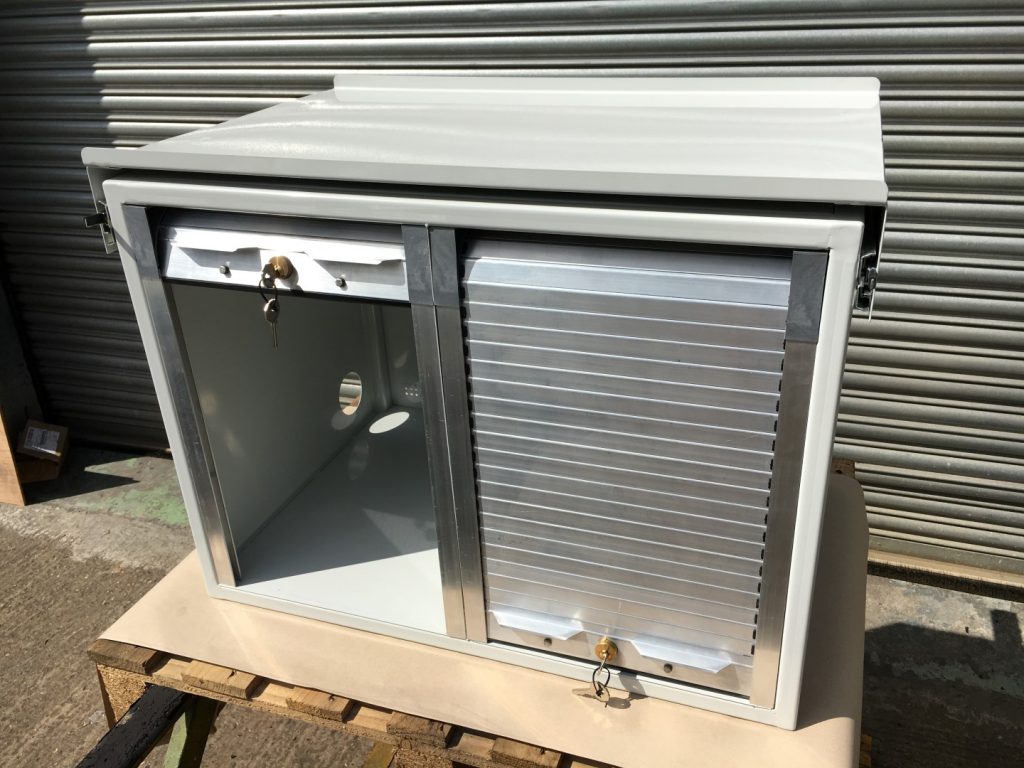

The solution has been manufactured from 25mm box section with 1.6mm mild steel sheet infill panels on the sides and rear. Inside the unit are 2 equal sections to accommodate a Computer and Printer, to the front of these are two lockable roller shutter doors.
On top of the design there is a sliding worktop which can slide out to form a temporary table for the operator. This solution features locking drawer-slides is designed to hold a max load of 15kg when fully extended.

The solution will be powder coated in a light grey to provide a hard wearing and long lasting finish.

Approximate overall dimensions: 800mm (L) x 520mm (W) x 600mm (H)

Acres Drawing Number: AD-984-2016-03-1

Quantity required: 2 off units
