Tooling & Jig Storage Racking

Scope

Design and manufacture a shelving solution to hold tooling and jigs. The efficient, effective, safe and certified racking helped to speed up productivity time. The solution was designed to a SWL to hold and safely store bespoke tooling parts.

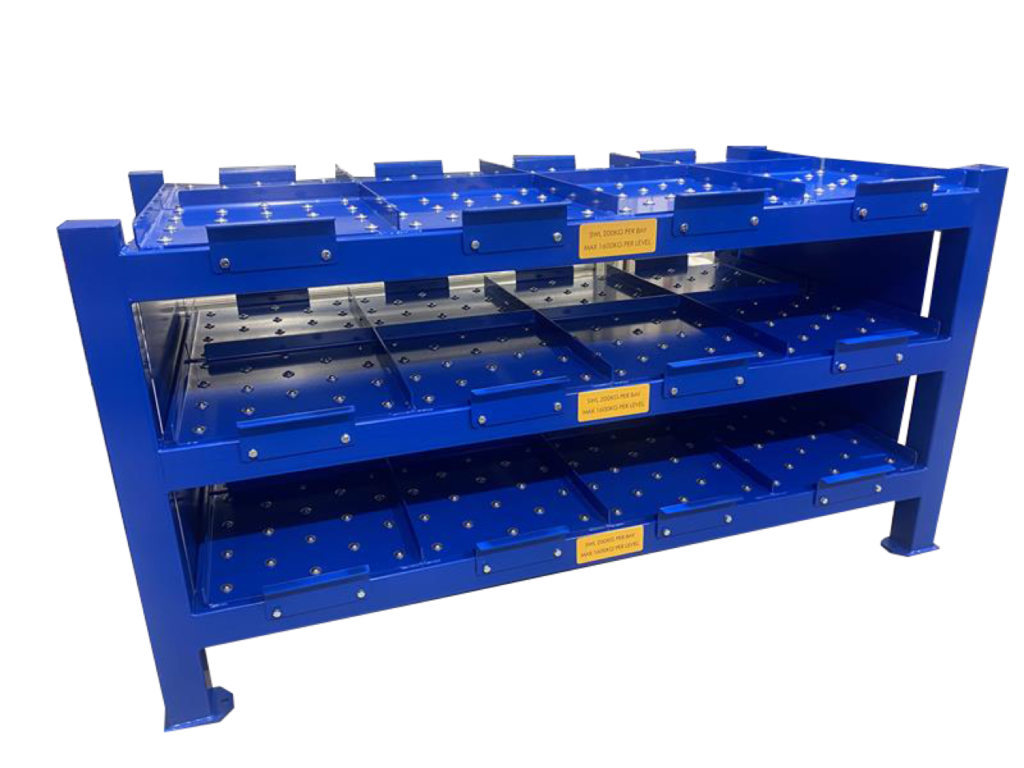

Each rack features 3 x shelves which have a SWL of 200kg. Each level has a central divider and ball transfer units fitted so the tooling equipment could be easily transferred on and off. The front of each shelf has drop down gate to secure the tools once they are loaded. This improves safety of the tools when being stored on the unit. The overall size of the unit is 4000mm (W) x 1250mm (D) x 1600mm (H), which delivers improved space utilisation through efficient footprint design and allows for improved accessibility. The bright blue powder coat finish looks very impressive however Acres offer many different colours.

Solution

Project REF: AD-2343-2023-09-1 / 11998-P1

Why?

Why is space and footprint utilisation important in manufacturing? Improved space management in manufacturing significantly optimises production, lowers costs, ensures safety, and enhances operational effectiveness. Benefits include:

1. Increased Efficiency: Streamlines production processes, reducing time and effort needed for material and product movement.
2. Cost Savings: Minimises the need for physical expansion, saving on real estate and operational expenses.
3. Enhanced Safety: Reduces accidents by minimising clutter and maintaining clear pathways.
4. Scalability and Flexibility: Allows for easier adjustments and scaling of operations in response to changing demands.
5. Improved Inventory Management: Facilitates better organization and tracking of inventory, reducing waste and improving response times.
6. Boosted Employee Morale: Enhances worker satisfaction and productivity by creating a clean and orderly environment.

Why is it important to ensure that your racking is fully certified and has been proof tested? Having a clearly defined SWL on racking is essential for maintaining a safe, efficient, and compliant storage environment:

1. Safety: Prevents overloading and associated risks, ensuring worker safety by adhering to load limits.
2. Structural Integrity: Helps maintain the racking’s durability by avoiding damage from excessive loads.
3. Compliance: Ensures adherence to industry regulations, avoiding legal and financial penalties.
4. Efficiency and Organisation: Optimises space usage and improves access to stored items, enhancing operational productivity.
5. Risk Management: Reduces the risk of product damage and inventory loss by facilitating proper weight distribution.

Acres have a range of standard products but also support clients with custom machinery and medium-high volume products such as trolleys, stillages etc.
