Machining Solutions

Acres have basic manual machines, i.e. lathes and milling to assist with manufacturing samples and prototype.

GG Build Stand

GG Build Stand: The build stand was designed to hold and assist in the assembly of three different size rotors, featuring interchangeable centre plate locating sections to accommodate each rotor size. Universal stabilising arms with PTFE clamping blocks attached fit…

Read More

82mm Nylon Rollers

The rollers have been manufactured from Solid Nylon (Polyamide 6). They have been fitted with a 20mm internal bore ball bearings. The overall approximate size – 82mm (OD) x 100mm (W) Acres Reference – 2014-05-10795

Read More

Spray Extension Barrel

Spray Extension Barrel Design. The spray extension barrels have been manufactured for a local midlands based Automotive OEM for use in their body-shop area. The extensions have been manufactured from 303 stainless steel. They have used both welding and machining processes to…

Read More

Turnover Adaptor

Turnover Adaptor Trent 900 HPC Design. The turnover frame adaptor has been manufactured from nylon which allows the use of existing handling equipment rather than having to purchase new bespoke equipment. Along with the nylon locator there are 2 off…

Read More

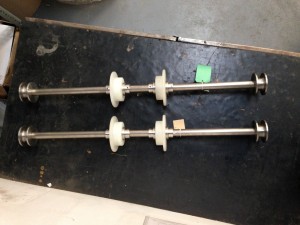

Lifting Bar XPE 1304

Lifting Bar XPE 1304 Design The Lifting Bar is designed to handle XWB, T700, T900 engine parts for the wash process giving more versatility to the operators. The main support bar is manufactured from 30mm 304 stainless steel round with…

Read More

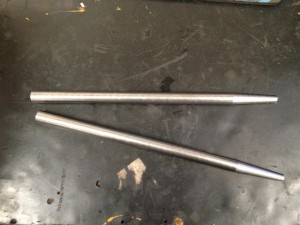

2013-10-10334 – 280mm Shaft

280mm Shaft design. Approx size: 280mm long o/a – 14 dia o/a. Turned down one end from 14 dia to 8 dia over 50mm.

Read More

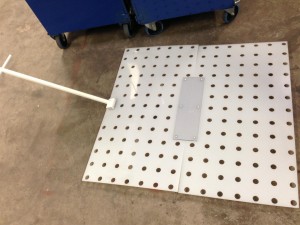

2013-07-10152 – PTFE Parts Plate

The plate will sit under the large engine parts preventing metal to metal contact with the oven and trolley roller beds. It will be manufactured from 12mm PTFE to withstand temperatures up to 220 degrees C. Due to its size…

Read More

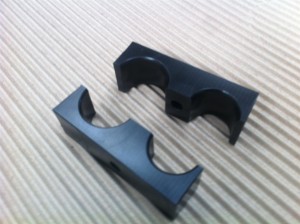

2013-07-10168 – Cable Clamp

Manufacture Cable Clamp to drawing number 3EER 200011-939. Manufacture from Nylon 66 (Black). All sharp edges to be deburred. Approx. size: 96mm x 52mm x 30mm. 1 cable entry hole 35mm, 1 cable entry hole 30mm. 52mm centres. 9mm through…

Read More

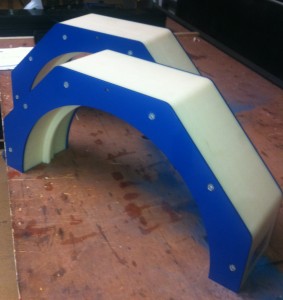

2012-11-9727 – Turnover Adaptor

Visit site to evaluate customer requirements, produce CAD drawings and manufacture Turnover Adaptor. The adaptor will be machined from Nylon 6 and interface with the 5 – 6 Cone assembly, this will then fit into the existing Turnover Frame (REF…

Read More
Toyota

Toyota

Toyota’s decision to establish a manufacturing operation in the UK was announced in 1989 and Toyota Motor Manufacturing (UK) Ltd was established in December that year. Acres has been supporting the vehicle manufacturing plant located at the Burnaston site in Derbyshire since this time, developing a close relationship and proving bespoke production support solutions.

Read More
